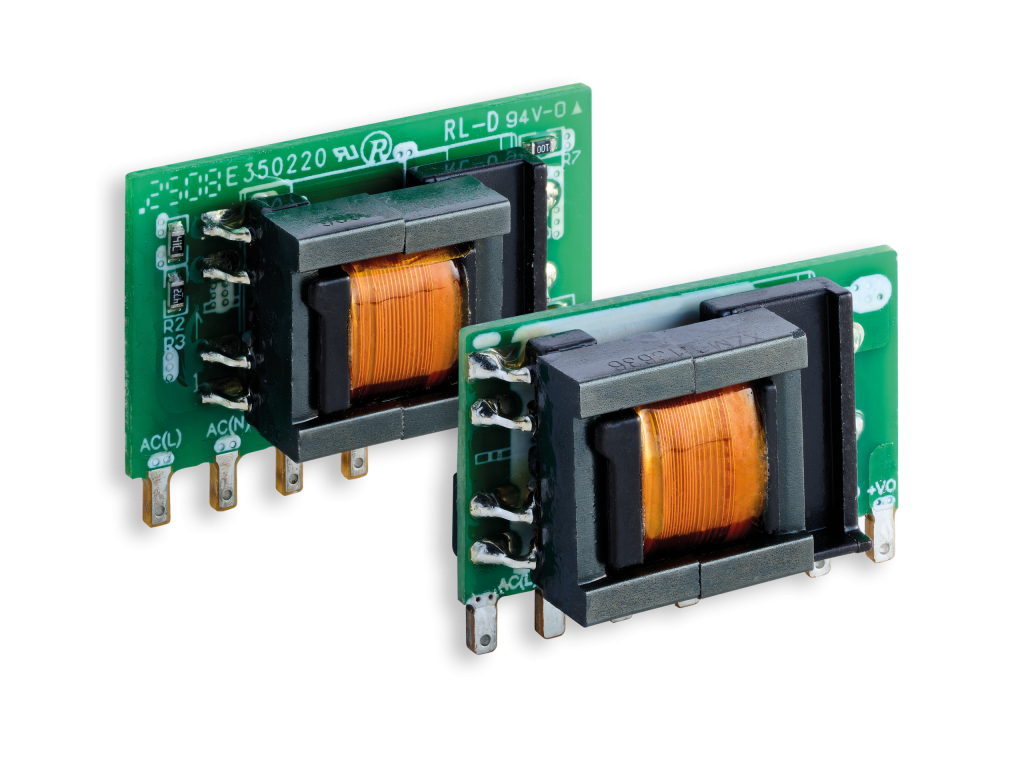

APX05S SIP SMPS Series SIP Switching Power Supply Modules

3.3 & 5 Watt PCB SIP Module
Input voltage range: 85 – 305 Vac or 70 – 430 Vdc
Output voltages: 3.3 V, 5 V, 9 V, 12 V, 15 V and 24 V
Output Power: 3.3W or 5W
Operating temperature: -40 °C to +85 °C
High efficiency: up to 81%
High isolation: ≥3600 Vac between input and output
Built-in protection: over-current, over-voltage and short-circuit protection with automatic recovery
Low stand-by power consumption
UL & TÜV certified
EN/IEC/UL62368-1
IEC/EN61558-2-16

These are our series standard parts, for custom solutions contact us.

Part Number	Stock	PDF	Output Power	DC Voltage	Rated Current	Efficiency	Ripple Noise	Weight	Temperature
APX05S0300WP-100	RFQ		3.3W	3.3Vdc	1000mA	69%	150mVp-p	4.8g	85
APX05S0300WP-200	RFQ		3.3W	3.3Vdc	1000mA	69%	150mVp-p	4.9g	85
APX05S0300WP-300	RFQ	-	3.3W	3.3Vdc	1000mA	69%	150mVp-p	5g	85
APX05S0500WP-100	RFQ		5W	5Vdc	1000mA	76%	150mVp-p	4.8g	85
APX05S0500WP-200	RFQ		5W	5Vdc	1000mA	76%	150mVp-p	4.9g	85
APX05S0500WP-300	RFQ	-	5W	3.3Vdc	1000mA	76%	150mVp-p	5g	85
APX05S0900WP-100	RFQ		5W	9Vdc	560mA	77%	150mVp-p	4.8g	85
APX05S0900WP-200	RFQ		5W	9Vdc	560mA	77%	150mVp-p	4.9g	85
APX05S0900WP-300	RFQ	-	5W	9Vdc	560mA	77%	150mVp-p	5g	85
APX05S1200WP-100	RFQ		5W	12Vdc	420mA	79%	150mVp-p	4.8g	85
APX05S1200WP-200	RFQ	-	5W	12Vdc	420mA	77%	150mVp-p	4.9g	85
APX05S1200WP-300	RFQ	-	5W	12Vdc	420mA	79%	150mVp-p	5g	85
APX05S1500WP-100	RFQ		5W	15Vdc	340mA	79%	150mVp-p	4.8g	85
APX05S1500WP-200	RFQ		5W	15Vdc	340mA	79%	150mVp-p	4.9g	85
APX05S1500WP-300	RFQ	-	5W	15Vdc	340mA	79%	150mVp-p	5g	85
APX05S2400WP-100	RFQ		5W	24Vdc	210mA	81%	150mVp-p	4.8g	85
APX05S2400WP-200	RFQ		5W	24Vdc	210mA	81%	150mVp-p	4.9g	85
APX05S2400WP-300	RFQ	-	5W	24Vdc	210mA	81%	150mVp-p	5g	85
