ZETTLER Magnetics specializes in the development, engineering and production of environmentally-friendly, safe, efficient and cost-effective power solutions including passive components for filtering, noise suppression, and EMI/EMC management. While most are built-to-spec designs for the diverse needs of our customers, off the shelf options are available for popular common mode, differential, drum, and PFC chokes.
These are our standard parts, for custom solutions contact us.
Selected Filters:
| Part Number | Image | Stock | L (mH) | Rdc typ.(Ω)(Ta=25℃) | Rdc max.(Ω)(Ta=25℃) | Ie (A) (ΔT=40℃) | Saturation Current (10% drop) | Saturation Current (30% drop) | |
|---|---|---|---|---|---|---|---|---|---|

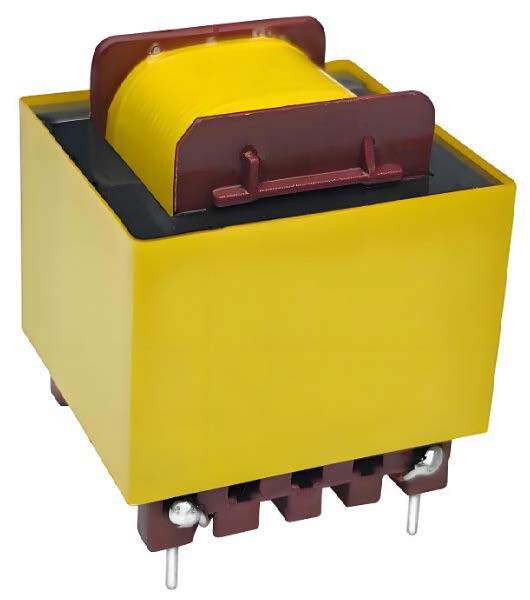

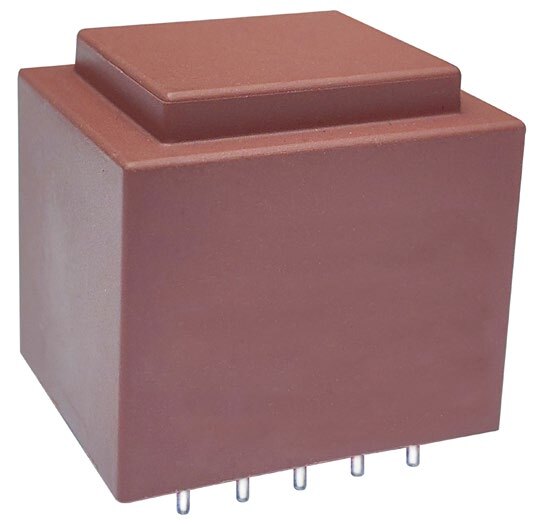

| XZM-RE28007 |  |  |  250 | 3.0±20% | 0.43 | 0.55 | 1.50 | 3.00 | 3.70 |
| XZM-RE28029 | | | 250 | 6.5±20% | 1.00 | 1.30 | 1.00 | 1.90 | 2.40 |
| XZM-RE28039 |  | | 250 | 6.0 Min | 0.49 | 0.65 | 1.70 | 1.50 | 1.80 |
| XZM-RE28056GP | | | 250 | 10.0±20% | 0.64 | 0.85 | 1.40 | 1.30 | 1.80 |
| XZM-RE28070GP | | | 250 | 11.0 Min | 1.23 | 1.60 | 1.10 | 1.10 | 1.40 |
| XZM-RE28080GP | | | 250 | 6.0 Min | 0.53 | 0.70 | 1.60 | 1.90 | 2.40 |
| XZM-RE28086GP | | | 250 | 10.0±20% | 1.51 | 2.00 | 1.00 | 1.70 | 2.10 |
| XZM-RE28086GP-1 | | | 250 | 12.0 Min | 1.67 | 2.20 | 0.90 | 1.20 | 1.60 |
| XZM-RE28090GP | | | 250 | 13.0±20% | 0.85 | 1.10 | 0.90 | 1.10 | 1.60 |
| XZM-RE28099GP | | | 250 | 10.0±20% | 0.95 | 1.25 | 1.20 | 0.90 | 1.30 |
| XZM-RE28102GP | | | 250 | 2.0±20% | 0.68 | 0.90 | 1.40 | 5.40 | 6.80 |
| XZM-RE30015 | | | 250 | 5.2±20% | 0.40 | 0.55 | 1.90 | 2.10 | 2.70 |
| XZM-RE30020 | | | 250 | 14.0±20% | 0.96 | 1.30 | 1.30 | 1.30 | 1.80 |
| XZM-RE30025-01 | | | 250 | 4.5±20% | 0.47 | 0.65 | 2.00 | 3.40 | 4.40 |
| XZM-RE30027 | | | 250 | 2.0±20% | 0.16 | 0.22 | 2.40 | 3.60 | 4.40 |
| XZM-RE30054 | | | 250 | 9.5±20% | 0.85 | 1.20 | 1.30 | 1.60 | 2.30 |
| XZM-RE30057 | | | 250 | 3.2±20% | 0.32 | 0.45 | 2.40 | 5.70 | 7.40 |
| XZM-RE30060 | | | 247 | 2.5±20% | 0.18 | 0.25 | 3.20 | 4.70 | 6.20 |
| XZM-RE30064 | | | 250 | 5.0±20% | 0.48 | 0.70 | 2.00 | 3.20 | 4.40 |
| XZM-RE30064-03 | | | 250 | 4.0±20% | 0.48 | 0.70 | 2.00 | 4.80 | 6.20 |
| XZM-RE30068 | | | 250 | 4.0±20% | 0.29 | 0.40 | 2.40 | 2.90 | 3.70 |
| XZM-RE30076 | | | 250 | 3.5±20% | 0.40 | 0.55 | 2.00 | 3.40 | 4.20 |
| XZM-RE30079 | | | 250 | 2.0±20% | 0.51 | 0.70 | 1.60 | 6.60 | 8.40 |
| XZM-RE30082 | | | 250 | 14.0±20% | 0.94 | 1.30 | 1.10 | 1.30 | 1.80 |
| XZM-RE30093 | | | 175 | 8.0±20% | 0.47 | 0.70 | 1.90 | 1.90 | 2.40 |
| XZM-RE30101 | | | 250 | 2.0±20% | 0.19 | 0.25 | 3.00 | 5.60 | 7.00 |
| XZM-RE30115VP | | | 250 | 6.2±20% | 0.38 | 0.55 | 1.80 | 2.20 | 2.70 |
| XZM-RE30129GP-1 | | | 250 | 2.5±20% | 0.48 | 0.70 | 2.00 | 7.00 | 8.60 |
| XZM-RE30142GP | | | 250 | 4.4±20% | 0.64 | 1.00 | 1.80 | 3.80 | 4.80 |
| XZM-RE30142GP-6 | | | RFQ | 4.4±20% | 0.49 | 0.70 | 2.00 | 3.80 | 4.80 |
| XZM-RE30150GP | | | 250 | 4.8±20% | 0.65 | 0.90 | 1.50 | 2.90 | 3.60 |
| XZM-RE30156GP | | | 250 | 4.0±20% | 0.74 | 1.00 | 1.60 | 5.60 | 6.40 |
| XZM-RE30166VP | | | 250 | 2.0±20% | 0.18 | 0.25 | 2.60 | 3.80 | 5.00 |
| XZM-RE301801GP | | | 250 | 6.2±20% | 0.42 | 0.60 | 1.90 | 1.80 | 2.30 |
| XZM-RE301810-01 | | | 250 | 4.5±20% | 0.55 | 0.80 | 1.60 | 2.30 | 2.90 |
| XZM-RE301810-03 | | | 250 | 3.8±20% | 0.41 | 0.60 | 1.80 | 2.50 | 3.00 |
| XZM-RE302308 | | | 249 | 10.5±20% | 0.92 | 1.30 | 1.20 | 2.30 | 3.00 |
